Defining your own custom loaders¶
Defining a simple utility-function to get a peek of the file in question:
def head(f, n=5):
"""Print the first *n* lines of a text file as one block."""
lines = [f" {f.name} ".center(80, "=")]
with open(f) as datafile:
if n > 1:
for j in range(n):
line = datafile.readline()
if not line:
break
lines.append(f"[{j + 1:02}] {line.rstrip()}")
else:
for j, line in enumerate(datafile):
lines.append(f"[{j + 1:02}] {line.rstrip()}")
lines.append(f" {f.name} ".center(80, "="))
print(chr(10).join(lines))

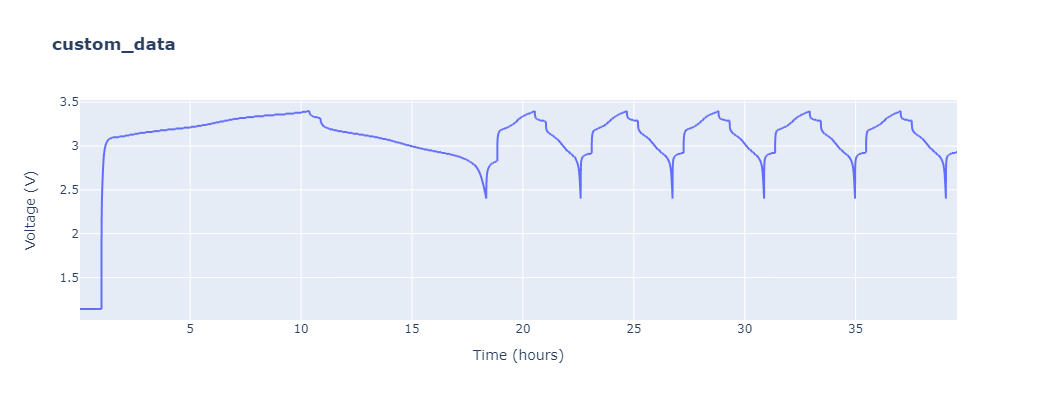

Using the "custom" instrument¶
This loader can be used if you have simple but unusual files. It needs an instrument file containing a description of the structure of the data file. You can load files in csv, xlsx, and xls format using this loader.
Here is an example of a custom data file and a corresponding instrument file (yaml format).
=============================== custom_data.csv ================================
[01] # PRIME INSTRUMENT FILE --- M12X---!! HEAD !!---M13B---;;;;;;;;;
[02] number of headers ;19;;;;;;;;
[03] operator;Jan Petter Maehlen;;;;;;;;
[04] date;01.01.2016;;;;;;;;
[05] instrument;bobby;;;;;;;;
[06] schedule;galvanic;;;;;;;;
[07] cell;ee002;;;;;;;;
[08] geometry;half-cell;;;;;;;;
[09] counter;Li-metal;;;;;;;;
[10] material;si-based;;;;;;;;
[11] mass;0.0012;;;;;;;;
[12] # PRIME INSTRUMENT FILE ---L01---''LOG'' ---0000000-;;;;;;;;;
[13] 15;Started collecting auxilary data (saved to output.log);;;;;;;;
[14] 773;Problem encountered - reloading config;;;;;;;;
[15] 1111;R12;;;;;;;;
[16] 6588;R12;;;;;;;;
[17] 7712;Problem encountered - reloading config;;;;;;;;
[18] 78999;R0;;;;;;;;
[19] # PRIME INSTRUMENT FILE ---268876-;;;;;;;;;
[20] index;test_time;step_time;date_stamp;step;cycle;current;voltage;charge_capacity;discharge_Capacity
[21] 0;120.00;120.00;43374.42;1;1;0.00;1.14;0.00;0.00
[22] 1;240.00;240.00;43374.42;1;1;0.00;1.14;0.00;0.00
[23] 2;360.00;360.00;43374.42;1;1;0.00;1.14;0.00;0.00
[24] 3;480.00;480.00;43374.42;1;1;0.00;1.14;0.00;0.00
[25] 4;600.01;600.01;43374.42;1;1;0.00;1.14;0.00;0.00
[26] 5;720.01;720.01;43374.42;1;1;0.00;1.14;0.00;0.00
[27] 6;840.01;840.01;43374.42;1;1;0.00;1.14;0.00;0.00
[28] 7;960.01;960.01;43374.43;1;1;0.00;1.14;0.00;0.00
[29] 8;1080.01;1080.01;43374.43;1;1;0.00;1.14;0.00;0.00
[30] 9;1200.01;1200.01;43374.43;1;1;0.00;1.14;0.00;0.00
=============================== custom_data.csv ================================
============================ custom_instrument.yml =============================
[01] ---
[02] formatters:
[03] skiprows: 19
[04] sep: ";"
[05] header: 0
[06] encoding: ISO-8859-1 # options: ISO-8859-1 utf-8 cp1252
[07] decimal: .
[08] thousands:
[09] comment_chars:
[10] - '#'
[11] - '!'
[12] post_processors:
[13] split_capacity: false
[14] split_current: false
[15] set_index: false
[16] rename_headers: true
[17] set_cycle_number_not_zero: false
[18] convert_date_time_to_datetime: true
[19] convert_step_time_to_timedelta: false
[20] convert_test_time_to_timedelta: false
[21] normal_headers_renaming_dict:
[22] data_point_txt: "index"
[23] datetime_txt: "date_stamp"
[24] test_time_txt: "test_time"
[25] step_time_txt: "step_time"
[26] cycle_index_txt: "cycle"
[27] step_index_txt: "step"
[28] current_txt: "current"
[29] voltage_txt: "voltage"
[30] charge_capacity_txt: "charge_capacity"
[31] discharge_capacity_txt: "discharge_Capacity"
[32] unit_labels:
[33] resistance: Ohms
[34] time: s
[35] current: mA
[36] voltage: V
[37] power: W
[38] capacity: mAh
[39] energy: Wh
[40] temperature: C
[41] raw_units:
[42] current: A
[43] charge: Ah
[44] mass: mg
[45] time: s
[46] raw_limits:
[47] current_hard: 1.0e-13
[48] current_soft: 1.0e-05
[49] ir_change: 1.0e-05
[50] stable_charge_hard: 0.9
[51] stable_charge_soft: 5.0
[52] stable_current_hard: 2.0
[53] stable_current_soft: 4.0
[54] stable_voltage_hard: 2.0
[55] stable_voltage_soft: 4.0
============================ custom_instrument.yml =============================
(cellpy) - self.sep=';', self.skiprows=19, self.header=0, self.encoding='ISO-8859-1', self.decimal='.'
(cellpy) - running post-processor: rename_headers
Index(['index', 'test_time', 'step_time', 'date_stamp', 'step', 'cycle',
'current', 'voltage', 'charge_capacity', 'discharge_Capacity'],
dtype='object')
(cellpy) - running post-processor: convert_date_time_to_datetime
Using the "local_instrument" loader¶
This loader is used for loading data using the corresponding local yaml file with definitions on how the data should be loaded. This loader
is based on the TxtLoader and can only be used to load csv-type files.
As a "short-cut", this loader will be used if you set the instrument to the name of the instrument file (with the .yml extension) e.g.
c = cellpy.get(rawfile, instrument="instrumentfile.yml").
The default instrument file is defined in your cellpy configuration file:
As an example, let us see how we could load one of the example Maccor files using a local instrument definition file instead of the implemented "maccor_txt" loader.
p.name='maccor_three.txt'
local_instrument.name='local_instrument.yml'
============================= local_instrument.yml =============================
[01] ---
[02] formatters:
[03] skiprows: 2
[04] sep: "\t"
[05] header: 0
[06] encoding: ISO-8859-1
[07] decimal: .
[08] thousands:
[09] comment_chars:
[10] - '#'
[11] - '!'
[12] pre_processors:
[13] remove_empty_lines: true
[14] post_processors:
[15] split_capacity: true
[16] split_current: true
[17] set_index: true
[18] rename_headers: true
[19] set_cycle_number_not_zero: true
[20] remove_last_if_bad: true
[21] convert_date_time_to_datetime: true
[22] convert_step_time_to_timedelta: true
[23] convert_test_time_to_timedelta: true
[24] normal_headers_renaming_dict:
[25] data_point_txt: "Rec#"
[26] datetime_txt: "DPt Time"
[27] test_time_txt: "TestTime"
[28] step_time_txt: "StepTime"
[29] cycle_index_txt: "Cyc#"
[30] step_index_txt: "Step"
[31] current_txt: "mAmps"
[32] voltage_txt: "Volts"
[33] # power_txt: "Watt-hr"
[34] charge_capacity_txt: "mAmp-hr"
[35] charge_energy_txt: "mWatt-hr"
[36] # ac_impedance_txt: "ACImp/Ohms"
[37] # internal_resistance_txt: "DCIR/Ohms"
[38] unit_labels:
[39] resistance: Ohms
[40] time: s
[41] current: mA
[42] voltage: mV
[43] power: mW
[44] capacity: mAh
[45] energy: mWh
[46] temperature: C
[47] states:
[48] column_name: State
[49] charge_keys:
[50] - C
[51] discharge_keys:
[52] - D
[53] rest_keys:
[54] - R
[55] raw_units:
[56] current: "mA"
[57] charge: "mAh"
[58] mass: "g"
[59] voltage: "mV"
[60] raw_limits:
[61] current_hard: 1.0e-13
[62] current_soft: 1.0e-05
[63] ir_change: 1.0e-05
[64] stable_charge_hard: 0.9
[65] stable_charge_soft: 5.0
[66] stable_current_hard: 2.0
[67] stable_current_soft: 4.0
[68] stable_voltage_hard: 2.0
[69] stable_voltage_soft: 4.0
============================= local_instrument.yml =============================
=============================== maccor_three.txt ===============================
[01] Today''s Date 03/28/2022 12:50:27 PM
[02]
[03] Date of Test: 08/23/2021 6:04:18 PM
[04]
[05] Rec# Cyc# Step TestTime StepTime mAmp-hr mWatt-hr mAmps Volts State ES
DPt Time Unnamed: 12
[06] 1 0 1 0d 00:00:00.00 0d 00:00:00.00 0.0 0.0 0.0 1853.8186 R
0 08/23/2021 6:04:18 PM
[07] 2 0 1 0d 00:01:00.00 0d 00:01:00.00 0.0 0.0 0.0 1853.0556 R
1 08/23/2021 6:05:18 PM
[08] 3 0 1 0d 00:02:00.00 0d 00:02:00.00 0.0 0.0 0.0 1853.0556 R
1 08/23/2021 6:06:18 PM
[09] 4 0 1 0d 00:03:00.00 0d 00:03:00.00 0.0 0.0 0.0 1853.2082 R
1 08/23/2021 6:07:18 PM
[10] 5 0 1 0d 00:04:00.00 0d 00:04:00.00 0.0 0.0 0.0 1853.0556 R
1 08/23/2021 6:08:18 PM
[11] 6 0 1 0d 00:05:00.00 0d 00:05:00.00 0.0 0.0 0.0 1853.0556 R
1 08/23/2021 6:09:18 PM
[12] 7 0 1 0d 00:06:00.00 0d 00:06:00.00 0.0 0.0 0.0 1853.2082 R
1 08/23/2021 6:10:18 PM
[13] 8 0 1 0d 00:07:00.00 0d 00:07:00.00 0.0 0.0 0.0 1853.2082 R
1 08/23/2021 6:11:18 PM
[14] 9 0 1 0d 00:08:00.00 0d 00:08:00.00 0.0 0.0 0.0 1852.903 R
1 08/23/2021 6:12:18 PM
[15] 10 0 1 0d 00:09:00.00 0d 00:09:00.00 0.0 0.0 0.0 1853.2082 R
1 08/23/2021 6:13:18 PM
[16] 11 0 1 0d 00:10:00.00 0d 00:10:00.00 0.0 0.0 0.0 1853.0556 R
1 08/23/2021 6:14:18 PM
[17] 12 0 1 0d 00:11:00.00 0d 00:11:00.00 0.0 0.0 0.0 1853.2082 R
1 08/23/2021 6:15:18 PM
[18] 13 0 1 0d 00:12:00.00 0d 00:12:00.00 0.0 0.0 0.0 1853.0556 R
1 08/23/2021 6:16:18 PM
[19] 14 0 1 0d 00:13:00.00 0d 00:13:00.00 0.0 0.0 0.0 1853.2082 R
1 08/23/2021 6:17:18 PM
[20] 15 0 1 0d 00:14:00.00 0d 00:14:00.00 0.0 0.0 0.0 1853.3608 R
1 08/23/2021 6:18:18 PM
=============================== maccor_three.txt ===============================
(cellpy) - running pre-processor: remove_empty_lines
(cellpy) - self.sep='\t', self.skiprows=2, self.header=0, self.encoding='ISO-8859-1', self.decimal='.'
(cellpy) - running post-processor: rename_headers
Index(['Rec#', 'Cyc#', 'Step', 'TestTime', 'StepTime', 'mAmp-hr', 'mWatt-hr',
'mAmps', 'Volts', 'State', 'ES', 'DPt Time', 'Unnamed: 12'],
dtype='object')
(cellpy) - running post-processor: remove_last_if_bad
(cellpy) - running post-processor: split_capacity
(cellpy) - running post-processor: split_current
(cellpy) - running post-processor: set_index
(cellpy) - running post-processor: set_cycle_number_not_zero
(cellpy) - running post-processor: convert_date_time_to_datetime
(cellpy) - running post-processor: convert_step_time_to_timedelta
(cellpy) - running post-processor: convert_test_time_to_timedelta
